50M Series

companies handling the product：Nidec Corporation

The brushless motor ensures long life and high efficiency.

Brushless DC motors do not require commutators and brushes, which are the disadvantages of brush motors. Brushless DC motors are an energy-efficient direct-current drive with long life, noise levels, quietness, and high efficiency. Because the rotor is on the outside, this has high drive torque, and excels at low-speed applications.Extensive customization in accordance with usage application, required pricing and quantities is possible. This includes inclusion of mounting plates, use of neodymium, and sleeve bearings.

characteristics:: Low noise,Low vibration,Energy saving,Long life,Stability,REACH support,RoHs support

Contact information for product inquiry: Contact Us

Product data

Product data

Basic information

sort by power source type	DC
Size	φ63 mm
Size	Φ2.48 inch
Length	24.7 mm
Length	0.972 inch
Operation temperature	0～50 ℃
Number of poles	10
Companies handling the product	NIDEC CORPORATION

Input
Rated voltage	24 V21.6～26.4 V
Frequency	164.1142 Hz
Operating current	～2 A
Rated input	36 W

Output
Output	21.03 W
Torque	120　mN・m～120　mN・m
RPM	1673.5 min-1
Instantaneous maximum torque	120～　mN・m

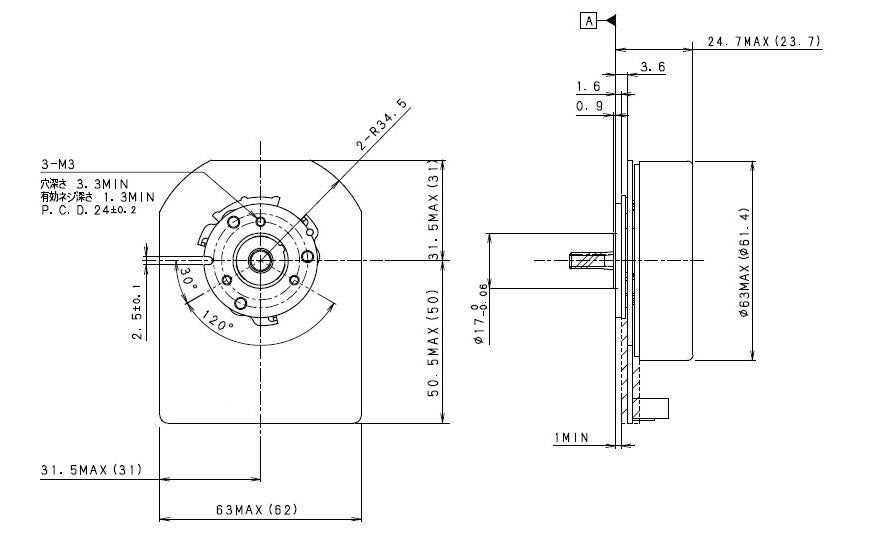

Drawing

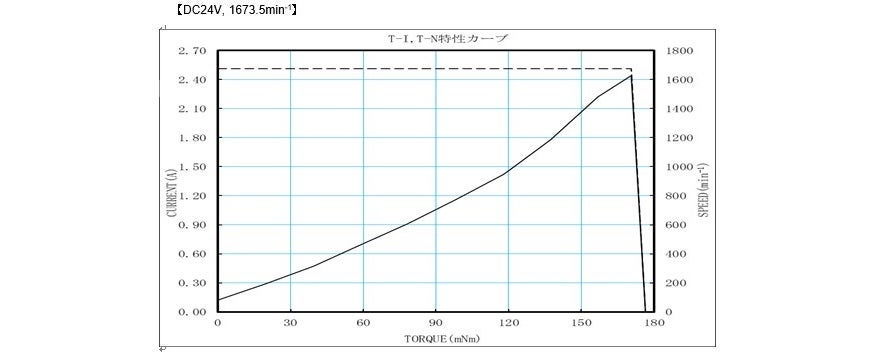

Characteristic chart
