Small-size and precision motors|Fans & Blowers|DC axial fan

D06X

companies handling the product:Nidec Corporation

General-use DC axial flow fan (60 x 60 x 10 mm)

Direct-current drive operated general fan motor. The ball bearing type used in ball bearings introduces a ball between the rotor axis and the stator, providing smooth rotation, and thus has the characteristic of not generating extra heat in the rotor and stator. The service life of fan motors is dependent on deterioration caused by increased temperatures, and bearings using ball bearings are considered to provide long service life. Please contact us for details.

characteristics:
Low noise,Low vibration,Energy saving,Enviromental performance,quietness,RoHs support
Contact information for product inquiry
Contact Us

Product data

Basic information

sort by power source type DC
Size W60×H60 mm
Size □2.362
Length 10 mm
Length 0.394 mm
Operation temperature -10~60 ℃
Lifespan 30000
Mass 29~29 ℃
Bearing Ball bearing
Companies handling the product NIDEC CORPORATION
Input
rated voltage 24 V20.4~27.6 V
Operating current 0.06 A0.06~0.06 A
Rated input 1.44 W1.44~1.44 W
Output
Rated speed 3600 min-13600~3600 min-1
Maximum air flow (m3/min) 0.38 m3/min0.38~0.38 m3/min
Maximum air flow (CFM) 13.4 CFM13.4~13.4 CFM
Maximum static pressure(Pa) 22 Pa22~22 Pa
Maximum static pressure(inchH2O) 0.09 inchH2O0.09~0.09 inchH2O
Sound pressure(dB[A]) 27 dB[A]27~27 dB[A]

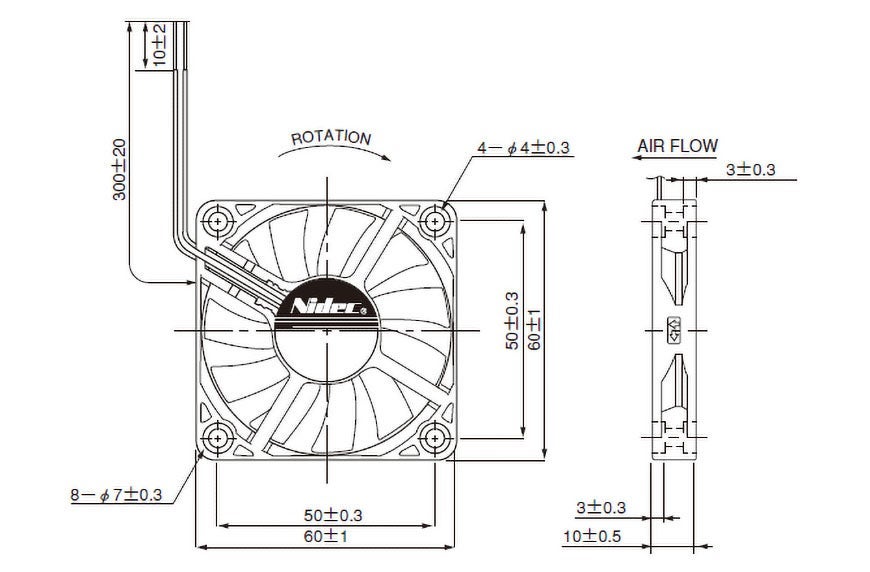

Drawing

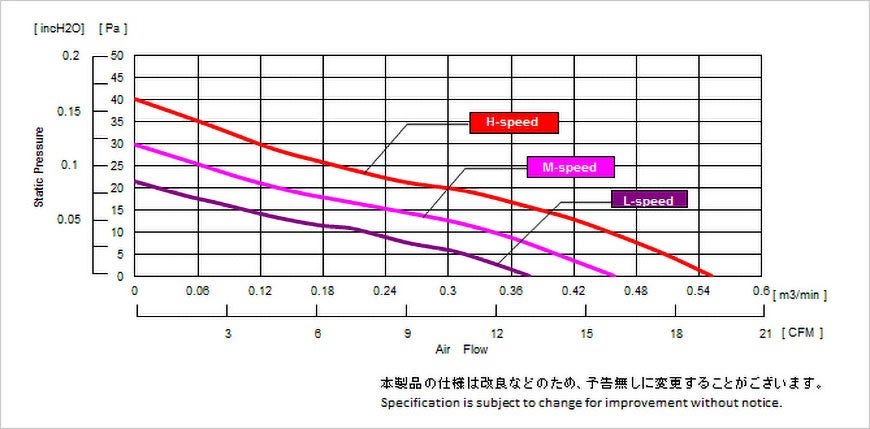

Characteristic chart
