Small-size and precision motors|Fans & Blowers|DC axial fan

H92C-A7

companies handling the product:Nidec Corporation

High-functionality fan UltraFlo series (92 x 92 x 32 mm)

A direct-current drive operated, high value-added fan motor that uses bearings and wing structures that we have developed independently. The ball bearing type used in ball bearings introduces a ball between the rotor axis and the stator, providing smooth rotation, and thus has the characteristic of not generating extra heat in the rotor and stator. The service life of fan motors is dependent on deterioration caused by increased temperatures, and bearings using ball bearings are considered to provide long service life. Please contact us for details.

characteristics:
Low noise,Low vibration,Energy saving,Long life,Stability,Enviromental performance,quietness,RoHs support
Contact information for product inquiry
Contact Us

Product data

Basic information

sort by power source type DC
Size W92×H92 mm
Size □3.622
Length 32 mm
Length 1.26 mm
Operation temperature -10~70 ℃
Lifespan 70000
Mass 180~180 ℃
Bearing Ball bearing
Companies handling the product NIDEC CORPORATION
Input
rated voltage 12 V7~13.8 V
Operating current 1.41 A1.41~1.41 A
Rated input 16.92 W16.92~16.92 W
Output
Rated speed 6000 min-16000~6000 min-1
Maximum air flow (m3/min) 3.37 m3/min3.37~3.37 m3/min
Maximum air flow (CFM) 119 CFM119~119 CFM
Maximum static pressure(Pa) 210 Pa210~210 Pa
Maximum static pressure(inchH2O) 0.84 inchH2O0.84~0.84 inchH2O
Sound pressure(dB[A]) 58 dB[A]58~58 dB[A]

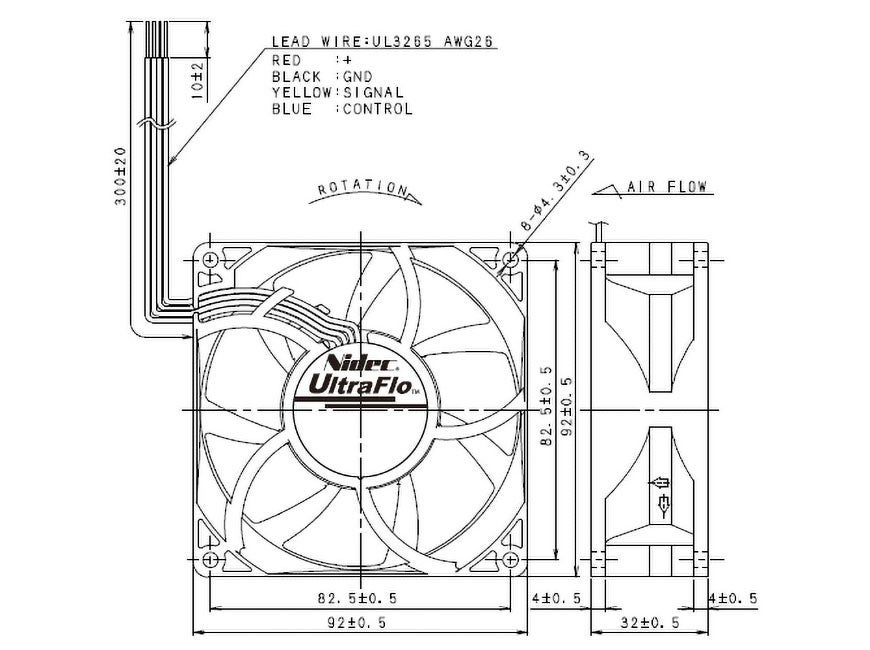

Drawing

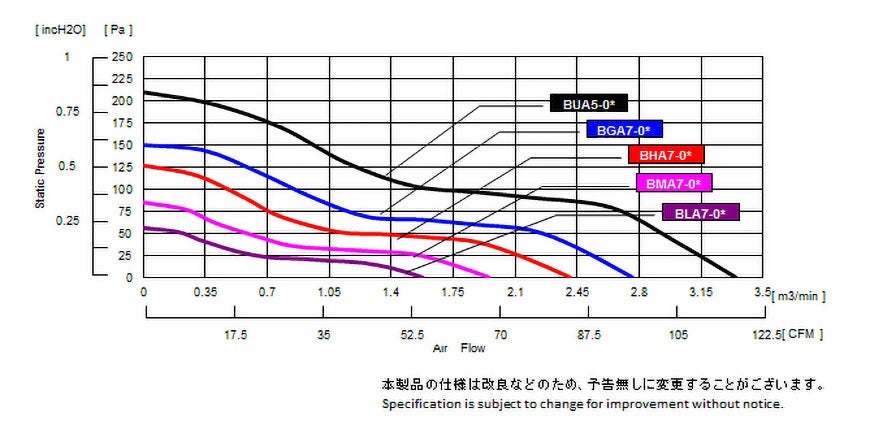

Characteristic chart

FAQ: Our Products

For inquiries related to Nidec products incorporated into end products manufactured by other companies, please contact the end product manufacturer. For contractual reasons, Nidec is unable to repair, replace, quote or suggest replacement products for components that have been designed specifically for a particular end product manufacturer.
