Small-size and precision motors｜Fans & Blowers｜DC axial fan

M60R M AB

companies handling the product：Nidec Corporation

High output, long life, high efficiency

Direct-current drive operated general fan motor. The NBRX type further improves the reliability of upon our former oil-impregnated sintered bearing, and is a totally new bearing system that we have developed independently. With a longer life than former oil-impregnated bearings, this can more securely retain rotating bodies, and features heat resistance, high-speed rotational stability, reduced magnetic vibration, and no limitations on mounting. Please contact us for details.

characteristics:: RoHs support

Contact information for product inquiry: Contact Us

Product data

Product data

Basic information

Sort by power source type	DC
Size	W60×H60 mm
Size	□2.362 inch
Length	15 mm
Length	0.59 inch
Operation temperature	-10～70 ℃
Lifespan	30,000（40℃）
Mass	520 g
Bearing	Sleeve bearings
Companies handling the product	NIDEC CORPORATION

Input
Rated voltage	12 V7～13.2 V
Operating current	0.14 A

Output
Rated speed	4300 min-1
Maximum air flow (m3/min)	0.64 m3/min
Maximum air flow (CFM)	22.6 CFM
Maximum static pressure(Pa)	39 Pa
Maximum static pressure(inchH2O)	0.16 inchH2O
Sound pressure(dB[A])	32 dB[A]

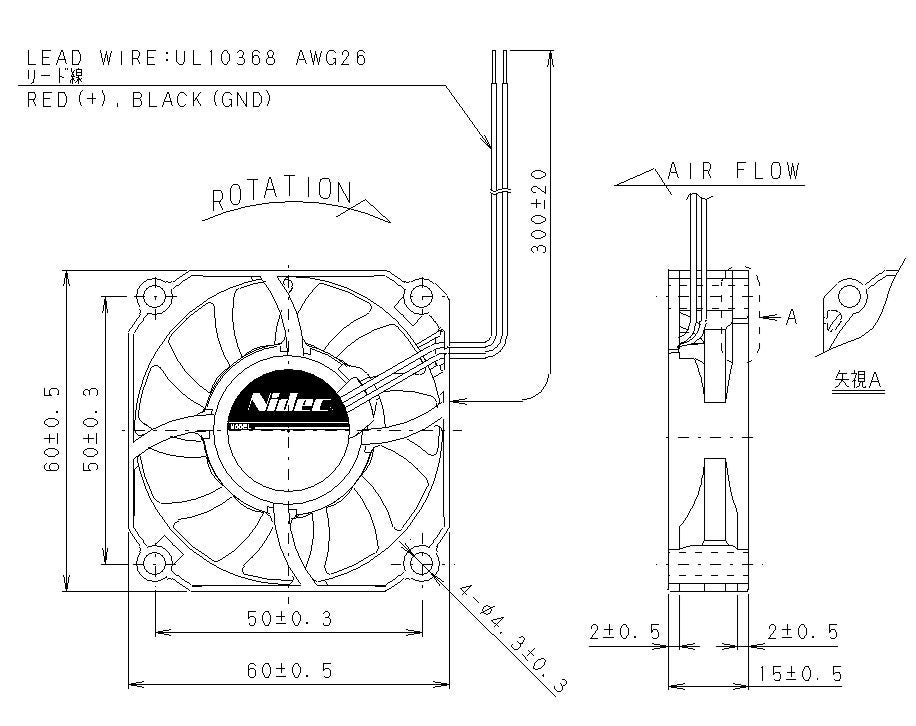

Drawing

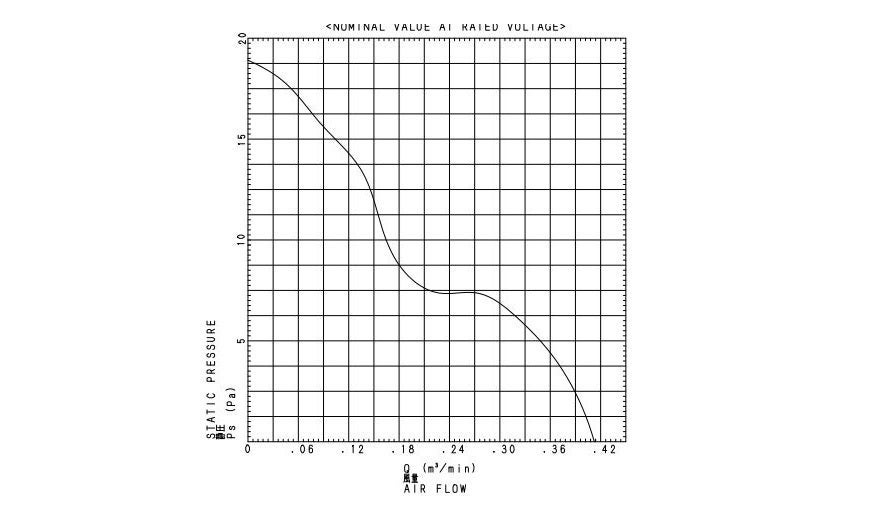

Characteristic chart

FAQ: Our Products

For inquiries related to Nidec products incorporated into end products manufactured by other companies, please contact the end product manufacturer. For contractual reasons, Nidec is unable to repair, replace, quote or suggest replacement products for components that have been designed specifically for a particular end product manufacturer.
