Small-size and precision motors|Fans & Blowers|DC axial fan

U30X-Z5

companies handling the product:Nidec Corporation

General-use DC axial flow fan (30 x 30 x 10 mm)

Direct-current drive operated general fan motor.The NBRX type further improves the reliability of upon our former oil-impregnated sintered bearing, and is a totally new bearing system that we have developed independently. With a longer life than former oil-impregnated bearings, this can more securely retain rotating bodies, and features heat resistance, high-speed rotational stability, reduced magnetic vibration, and no limitations on mounting.Please contact us for details.

characteristics:
Low noise,Low vibration,Energy saving,Enviromental performance,quietness,RoHs support
Contact information for product inquiry
Contact Us

Product data

Basic information

sort by power source type DC
Size W30×H30 mm
Size □1.181
Length 10 mm
Length 0.394 mm
Operation temperature -10~70 ℃
Lifespan 30000
Mass 10~10 ℃
Bearing NBRX
Companies handling the product NIDEC CORPORATION
Input
rated voltage 12 V5~13.8 V
Operating current 0.05 A0.05~0.05 A
Rated input 0.6 W0.6~0.6 W
Output
Rated speed 8500 min-18500~8500 min-1
Maximum air flow (m3/min) 0.118 m3/min0.118~0.118 m3/min
Maximum air flow (CFM) 4.17 CFM4.17~4.17 CFM
Maximum static pressure(Pa) 44 Pa44~44 Pa
Maximum static pressure(inchH2O) 0.18 inchH2O0.18~0.18 inchH2O
Sound pressure(dB[A]) 24 dB[A]24~24 dB[A]

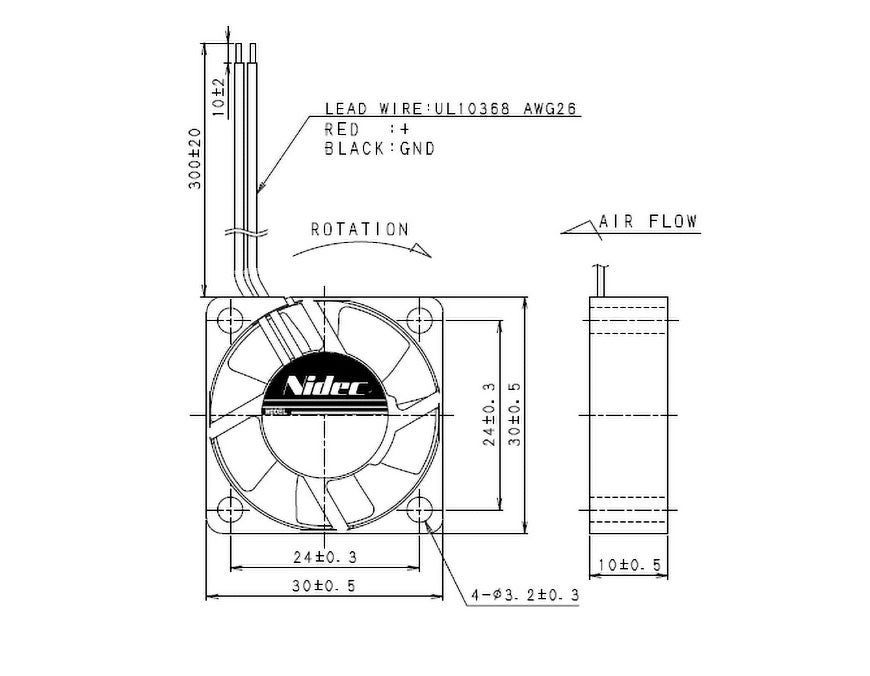

Drawing

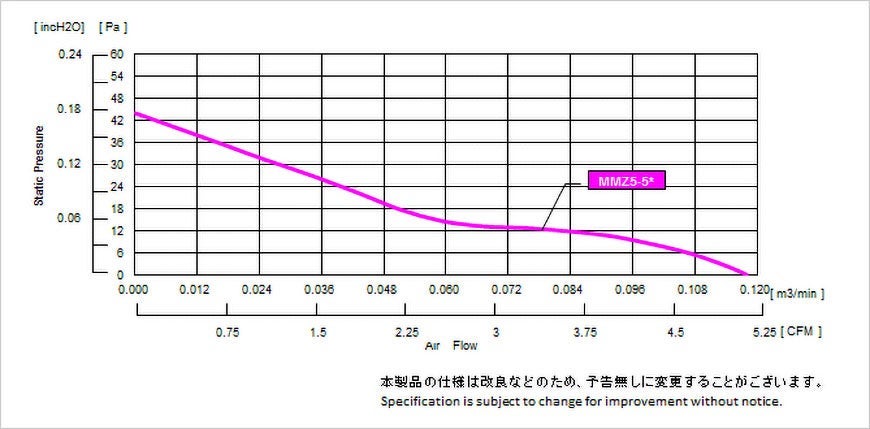

Characteristic chart
