Small-size and precision motors｜Fans & Blowers｜DC axial fan
U40X-Z7
companies handling the product：Nidec Corporation
High-functionality fan UltraFlo series (40 x 40 x 10 mm)
A direct-current drive operated, high value-added fan motor that uses bearings and wing structures that we have developed independently.The NBRX type further improves the reliability of upon our former oil-impregnated sintered bearing, and is a totally new bearing system that we have developed independently. With a longer life than former oil-impregnated bearings, this can more securely retain rotating bodies, and features heat resistance, high-speed rotational stability, reduced magnetic vibration, and no limitations on mounting.Please contact us for details.
- characteristics:
- Low noise,Low vibration,Energy saving,Enviromental performance,quietness,RoHs support
- Contact information for product inquiry
- Contact Us
Product data
Basic information
| sort by power source type | DC |
|---|---|
| Size | W40×H40 mm |
| Size | □1.575 |
| Length | 10 mm |
| Length | 0.394 mm |
| Operation temperature | -10～70 ℃ |
| Lifespan | 30000 |
| Mass | 20～20 ℃ |
| Bearing | NBRX |
| Companies handling the product | NIDEC CORPORATION |
| rated voltage | 4.25～5.75 V |
|---|---|
| Operating current | 0.1～0.1 A |
| Rated input | 0.5～0.5 W |
| Rated speed | 5000～5000 min-1 |
|---|---|
| Maximum air flow (m3/min) | 0.11～0.11 m3/min |
| Maximum air flow (CFM) | 3.88～3.88 CFM |
| Maximum static pressure(Pa) | 20～20 Pa |
| Maximum static pressure(inchH2O) | 0.08～0.08 inchH2O |
| Sound pressure(dB[A]) | 14.5～14.5 dB[A] |

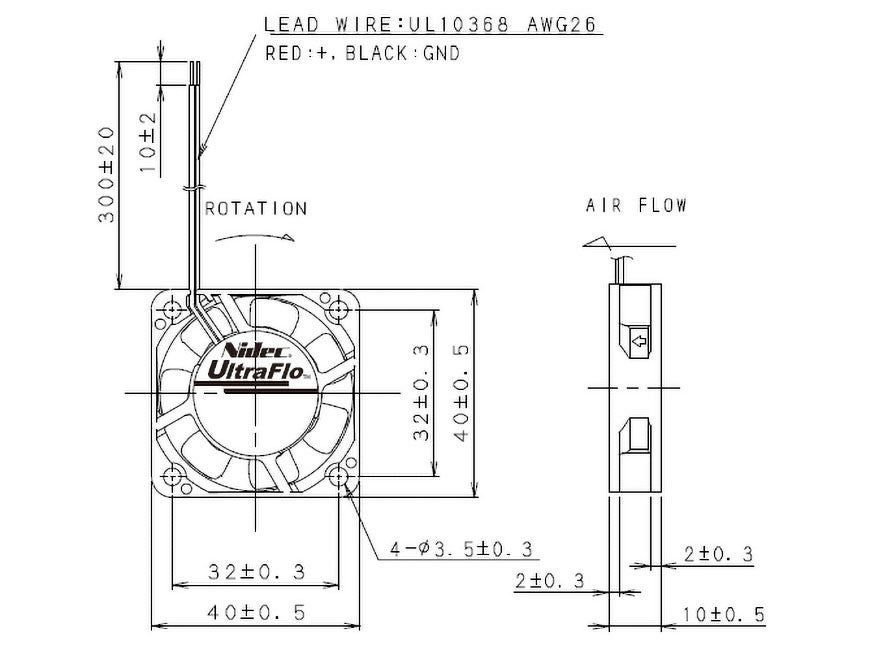

Drawing

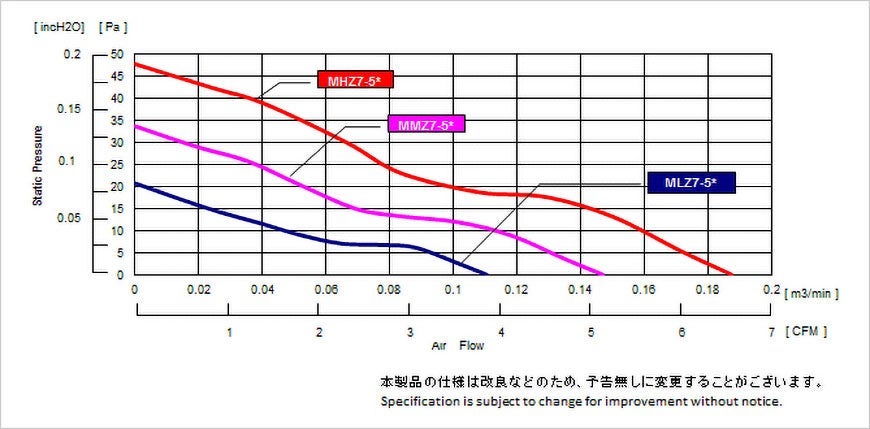

Characteristic chart
