U40X-Z7
companies handling the product：Nidec Corporation
High-functionality fan UltraFlo series (40 x 40 x 10 mm)
A direct-current drive operated, high value-added fan motor that uses bearings and wing structures that we have developed independently.This system utilizes our independently developed, entirely new bearing technology, further enhancing the reliability of traditional oil-impregnated sintered bearings. With a longer life than former oil-impregnated bearings, this can more securely retain rotating bodies, and features heat resistance, high-speed rotational stability, reduced magnetic vibration, and no limitations on mounting.Please contact us for details.
- characteristics:
- Low noise,Low vibration,Energy saving,Enviromental performance,quietness,RoHs support
- Contact information for product inquiry
- Contact us
Product data
Basic information
| Sort by power source type | DC |
|---|---|

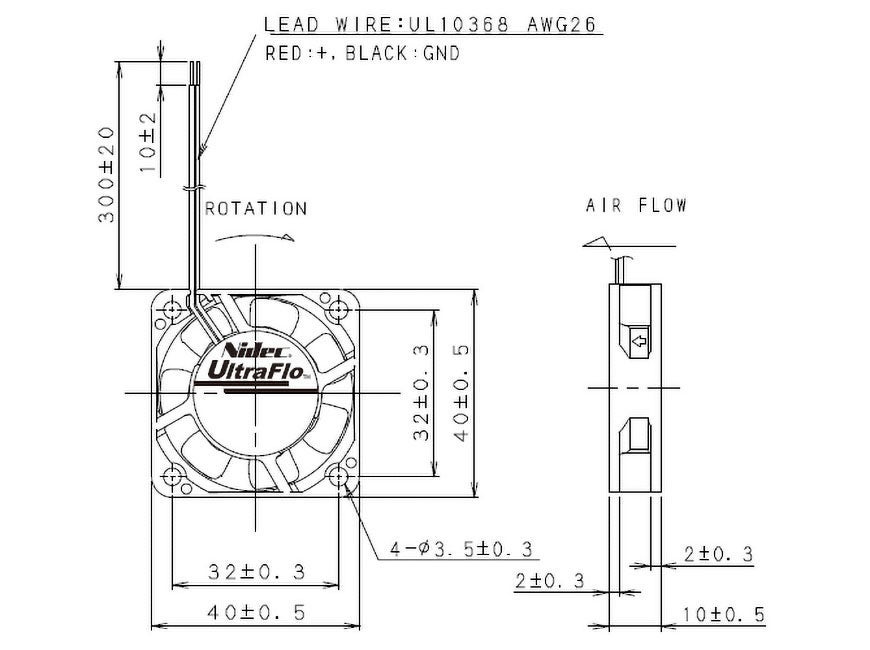

| Size | W40×H40 mm |
| Size | □1.575 |
| Length | 10 mm |
| Length | 0.394 mm |
| Operation temperature | -10～70 ℃ |
| Lifespan | 30000 |
| Mass | 20～20 ℃ |
| Companies handling the product | NIDEC CORPORATION |
| rated voltage | 7～13.8 V |
|---|---|
| Operating current | 0.07～0.07 A |
| Rated input | 0.84～0.84 W |
| Rated speed | 6500～6500 min-1 |
|---|---|

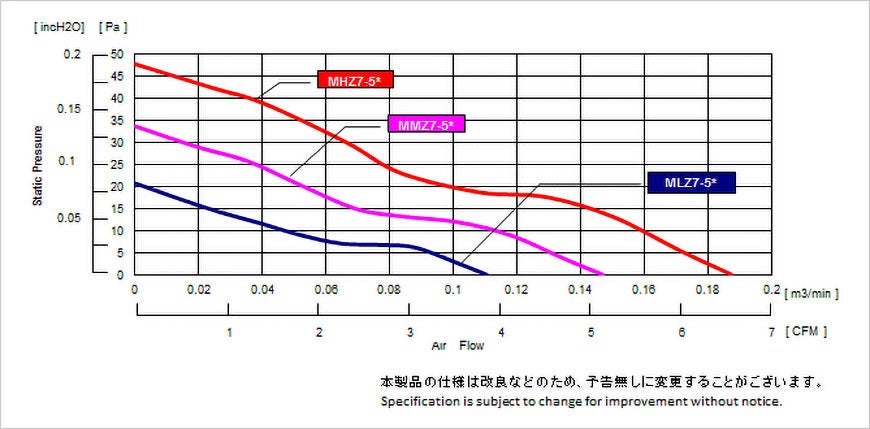

| Maximum air flow (m3/min) | 0.15～0.15 m3/min |
| Maximum air flow (CFM) | 5.3～5.3 CFM |
| Maximum static pressure(Pa) | 34～34 Pa |
| Maximum static pressure(inchH2O) | 0.14～0.14 inchH2O |
| Sound pressure(dB[A]) | 21～21 dB[A] |
