Small-size and precision motors|Fans & Blowers|DC axial fan

V80E-F5

companies handling the product:Nidec Corporation

High power・Long expectancy・High Efficiency

High cooling performance is achieved by adopting a high-power motor and optimizing the wind tunnel . Pressure characteristic of fan motors is improved, which is the best choice for the requirement of long-distance wind supply. In addition, the adopting of ball bearings makes the fan motor have a longer service life.

characteristics:
80×38mm Axial Fan
Contact information for product inquiry
Contact Us

Product data

Basic information

Sort by power source type DC
Size W80×H80 mm
Size □3.15 inch
Length 38 mm
Length 1.5 inch
Operation temperature -10~70 ℃
Lifespan 70,000(40℃)
Mass 220 g
Bearing Ball bearing
Companies handling the product NIDEC CORPORATION
Input
Rated voltage 12 V10.8~13.2 V
Operating current 3.4 A
Rated input 40.8 W
Output
Rated speed 15000 min-1
Maximum air flow (m3/min) 3.41 m3/min
Maximum air flow (CFM) 31.7 CFM
Maximum static pressure(Pa) 981 Pa
Maximum static pressure(inchH2O) 3.94 inchH2O
Sound pressure(dB[A]) 71 dB[A]

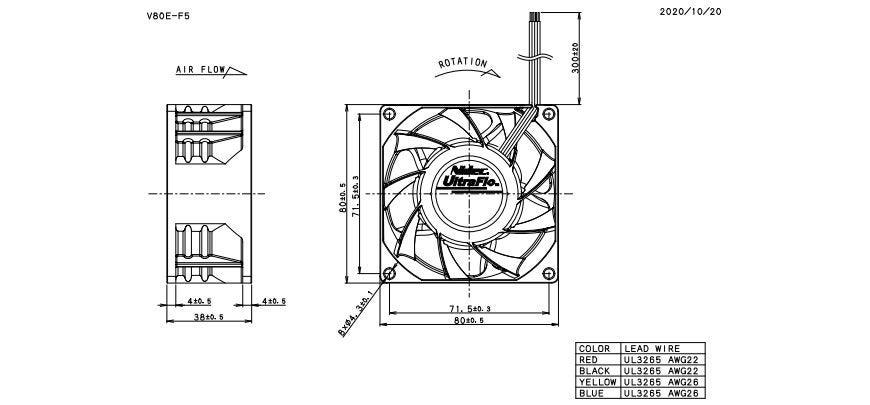

Drawing

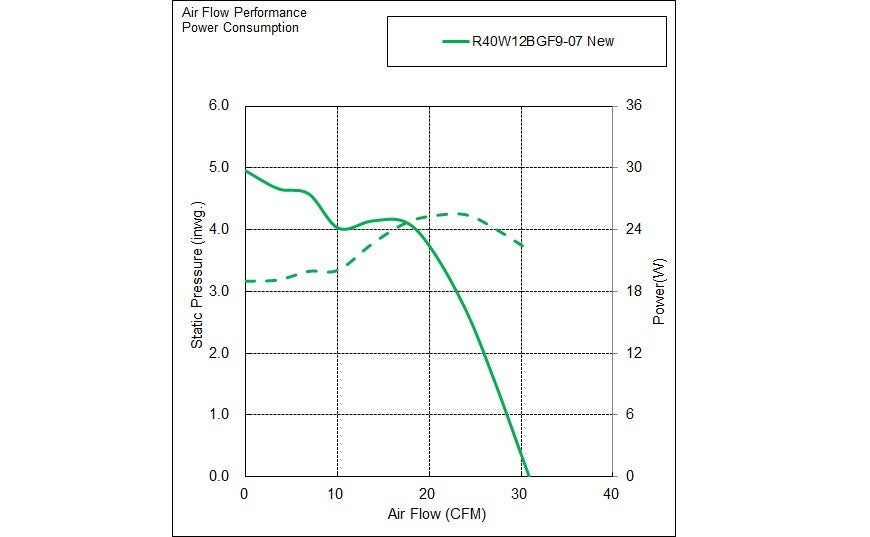

Characteristic chart
