Small-size and precision motors｜Fans & Blowers｜Blower（Centrifugal fan）
G40N M MZ
companies handling the product：Nidec Corporation
Thin DC Sirocco fan （Φ40x6.7mm）
A direct-current drive operated, fan motor that uses centrifugal method to blow air. This features a higher static pressure efficiency than general fan motors. The ball bearing type used in ball bearings introduces a ball between the rotor axis and the stator, providing smooth rotation, and thus has the characteristic of not generating extra heat in the rotor and stator. The service life of fan motors is dependent on deterioration caused by increased temperatures, and bearings using ball bearings are considered to provide long service life. Please contact us for details.
- characteristics:
- Thin, high efficiency, low vibration
- Contact information for product inquiry
- Contact Us
Product data
Basic information
| sort by power source type | DC |
|---|---|
| Size | W49.5×H42.55 mm |
| Size | W1.95×H1.7 inch |
| Length | 6.7 mm |
| Length | 0.26 inch |
| Operation temperature | -10～70 ℃ |
| Lifespan | 30000（40℃） |
| Mass | 13 g |
| Bearing | Sleeve bearings |
| Companies handling the product | NIDEC CORPORATION |

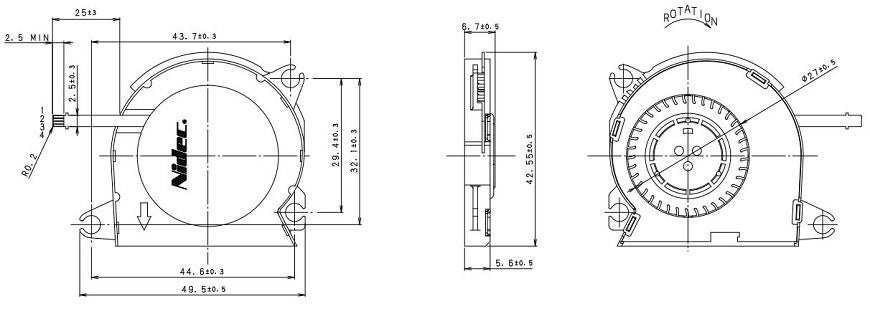

Drawing

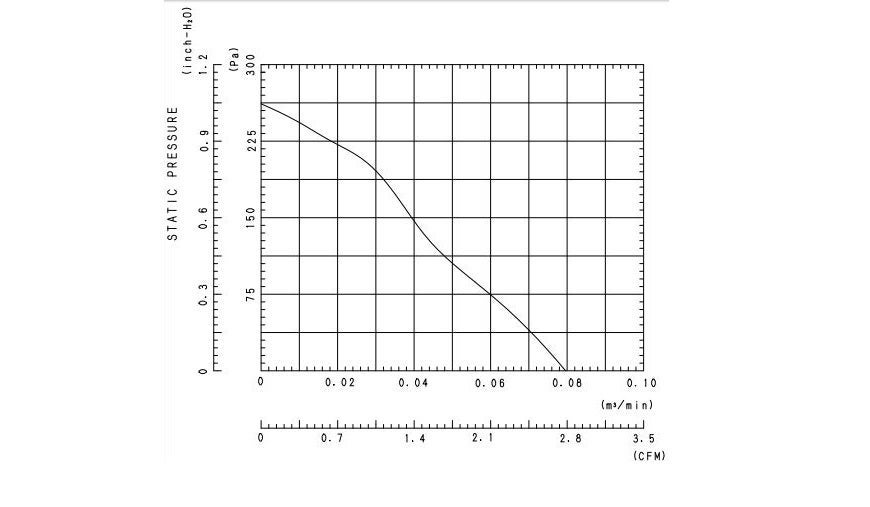

Characteristic chart
