Small-size and precision motors｜Fans & Blowers｜Blower（Centrifugal fan）
G50R series [G50R-DZ]
companies handling the product：Nidec Corporation
DC Sirocco fan（51×51×15mm）
A direct-current drive operated, fan motor that uses centrifugal method to blow air. The sleeve bearing type has lubricating oil enclosed within the sleeve around the axle, resulting in minimized friction and in excellent noise characteristics. Please contact us for details.
- characteristics:
- RoHs support
- Contact information for product inquiry
- Contact Us
Product data
Basic information
| Sort by power source type | DC |
|---|---|
| Size | W51×H51 mm |
| Size | □1.44 inch |
| Length | 15 mm |
| Length | 0.424 inch |
| Operation temperature | -10～70 ℃ |
| Lifespan | 30,000 (40℃) |
| Mass | 30 g |
| Bearing | Sleeve bearing |
| Companies handling the product | NIDEC CORPORATION |
| Rated voltage | 10.8～13.2 V |
|---|---|
| Operating current | |
| Rated input |
| Rated speed | |
|---|---|
| Maximum air flow (m3/min) | |
| Maximum air flow (CFM) | |
| Maximum static pressure(Pa) | |
| Maximum static pressure(inchH2O) | |
| Sound pressure(dB[A]) |

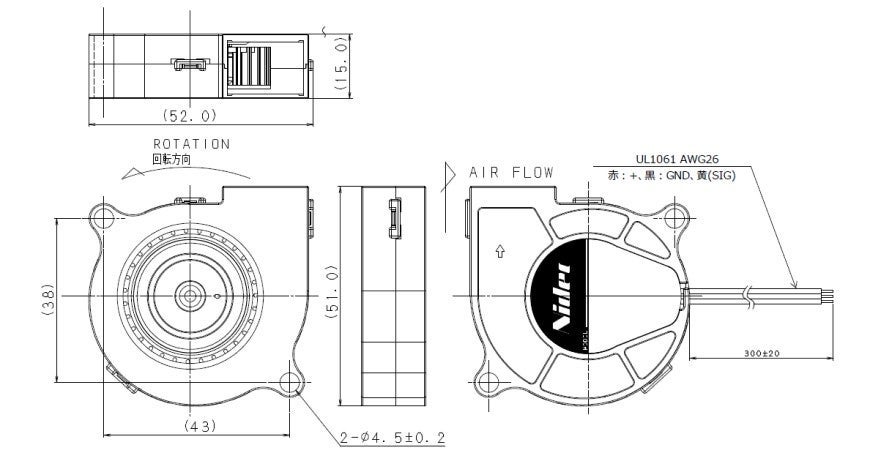

Drawing

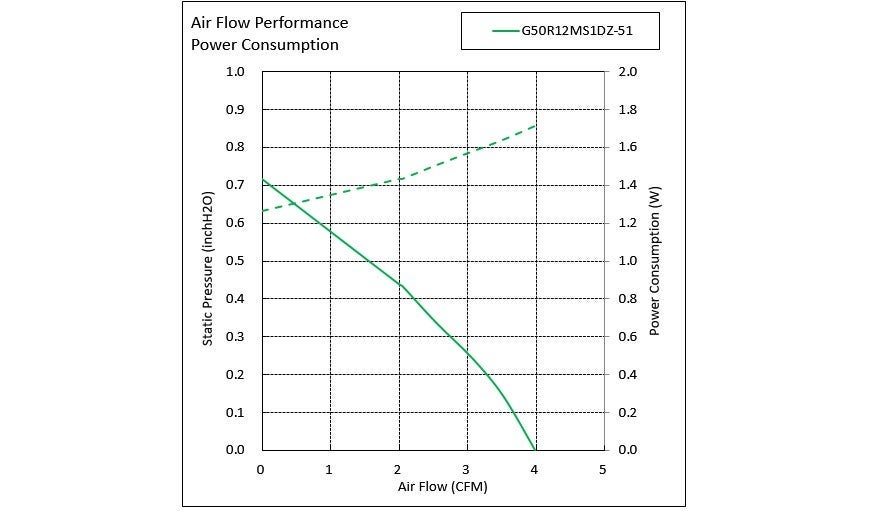

Characteristic chart
