Small-size and precision motors|Fans & Blowers|Blower(Centrifugal fan)

G60T M EAZ

companies handling the product:Nidec Corporation

General-use DC Sirocco fan(59.3×59.8×23mm)

A direct-current drive operated, high value-added fan motor that uses bearings and wing structures that we have developed independently.The ball bearing type used in ball bearings introduces a ball between the rotor axis and the stator, providing smooth rotation, and thus has the characteristic of not generating extra heat in the rotor and stator. The service life of fan motors is dependent on deterioration caused by increased temperatures, and bearings using ball bearings are considered to provide long service life.Please contact us for details.

characteristics:
RoHs support
Contact information for product inquiry
Contact Us

Product data

Basic information

sort by power source type DC
Size W59.3×H59.8 mm
Size W2.334×H2.354 inch
Length 23 mm
Length 0.905 inch
Operation temperature -10~70 ℃
Lifespan 25 ℃ 597H or more, 30 seconds ON-30 seconds OFF * 75,000 times or more
Mass 50 g
Bearing Sleeve bearings
Companies handling the product NIDEC CORPORATION
Input
rated voltage 24 V22.8~26.3 V
Operating current 0.29 A
Output
Rated speed 6100 min-1
Maximum air flow (m3/min) 0.38 m3/min
Maximum air flow (CFM) 13.4 CFM
Maximum static pressure(Pa) 386 Pa
Maximum static pressure(inchH2O) 1.551 inchH2O
Sound pressure(dB[A]) 48 dB[A]

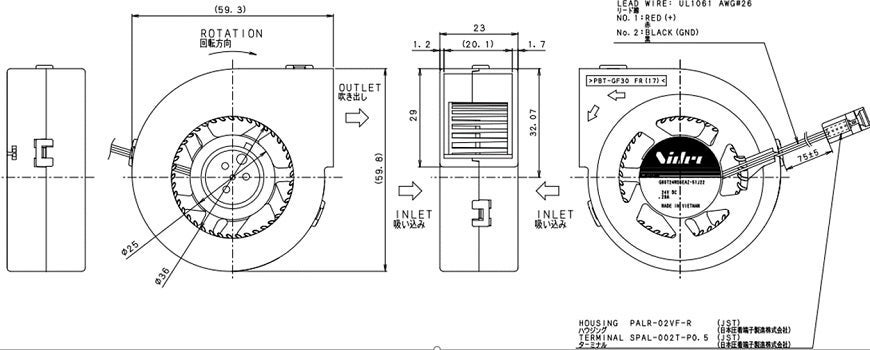

Drawing

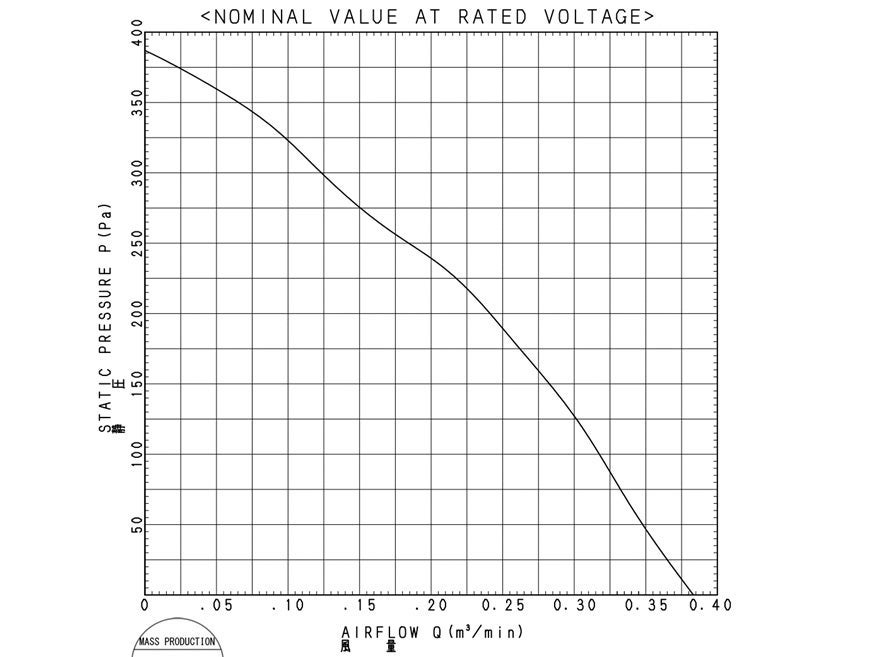

Characteristic chart
