Small-size and precision motors|Fans & Blowers|DC axial fan

R80W-N9

companies handling the product:Nidec Corporation

Counter Rotor fan(80×56mm)

"High cooling performance is achieved by adopting a high-power motor and optimizing the wind tunnel . Pressure characteristic of fan motors is improved, which is the best choice for the requirement of long-distance wind supply. In addition, the adopting of ball bearings makes the fan motor have a longer service life."

characteristics:
High power・Long expectancy・High Efficiency
Contact information for product inquiry
Contact Us

Product data

Basic information

Sort by power source type DC
Size W80×H80 mm
Size □3.15 inch
Length 56 mm
Length 2.2 inch
Operation temperature -10~70 ℃
Lifespan 70,000(40℃)
Mass 395 g
Bearing Ball bearings
Companies handling the product NIDEC CORPORATION
Input
Rated voltage 12 V10.8~13.2 V
Operating current 6.44 A
Rated input 77.3 W
Output
Rated speed 15500/14000 min-1
Maximum air flow (m3/min) 3.67 m3/min
Maximum air flow (CFM) 129.8 CFM
Maximum static pressure(Pa) 1890 Pa
Maximum static pressure(inchH2O) 11.61 inchH2O
Sound pressure(dB[A]) 83.5 dB[A]

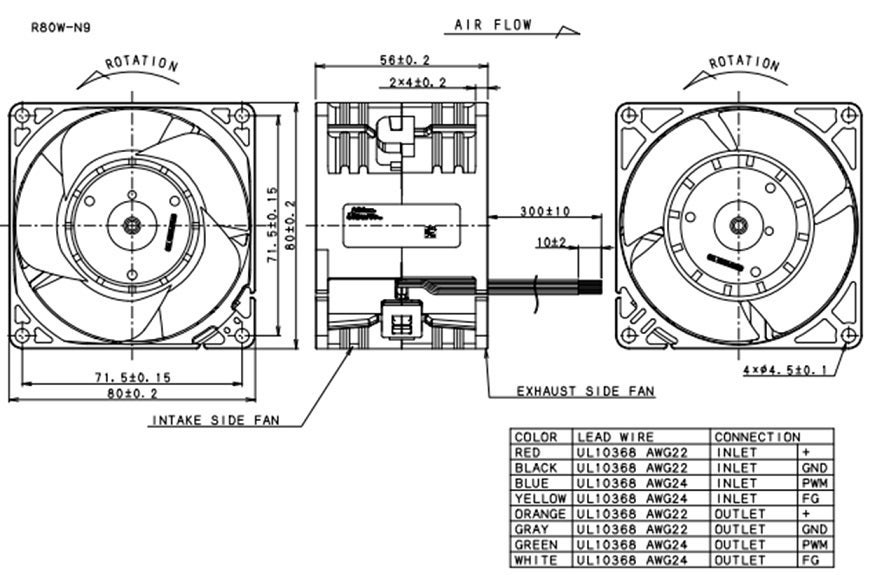

Drawing

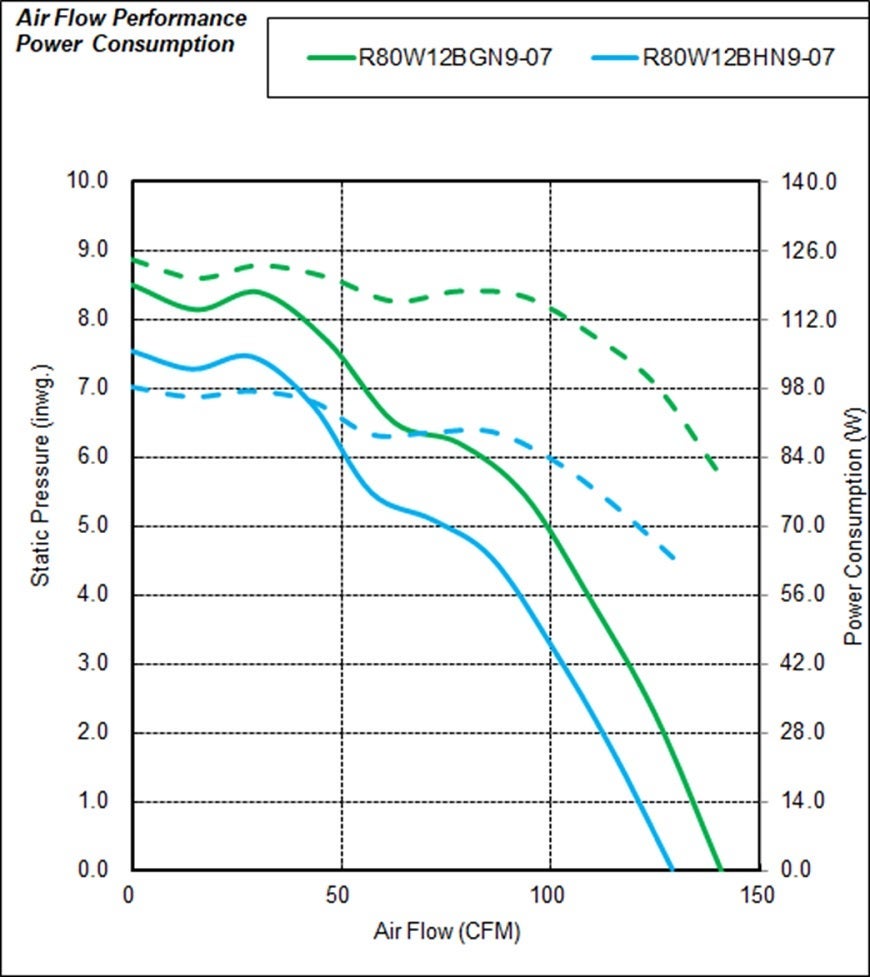

Characteristic chart
