Small-size and precision motors|Fans & Blowers|DC axial fan

T(U)80T M A7

companies handling the product:Nidec Corporation

General-use DC axial flow fan

Direct-current drive operated general fan motor. The NBRX type further improves the reliability of upon our former oil-impregnated sintered bearing, and is a totally new bearing system that we have developed independently. With a longer life than former oil-impregnated bearings, this can more securely retain rotating bodies, and features heat resistance, high-speed rotational stability, reduced magnetic vibration, and no limitations on mounting. Please contact us for details.

characteristics:
UL、CE、TU
Contact information for product inquiry
Contact Us

Product data

Basic information

Sort by power source type DC
Size W80×H80 mm
Size □3.15 inch
Length 25 mm
Length 0.98 inch
Operation temperature -10~70 ℃
Lifespan 30,000(40℃)
Mass 92 g
Bearing Sleeve bearings
Companies handling the product NIDEC CORPORATION
Input
Rated voltage 24 V20.4~27.6 V
Operating current 0.09 A
Rated input 79.2 W
Output
Rated speed 3100 min-1
Maximum air flow (m3/min) 1.13 m3/min
Maximum air flow (CFM) 39.9 CFM
Maximum static pressure(Pa) 41.3 Pa
Maximum static pressure(inchH2O) 0.166 inchH2O
Sound pressure(dB[A]) 30.5 dB[A]

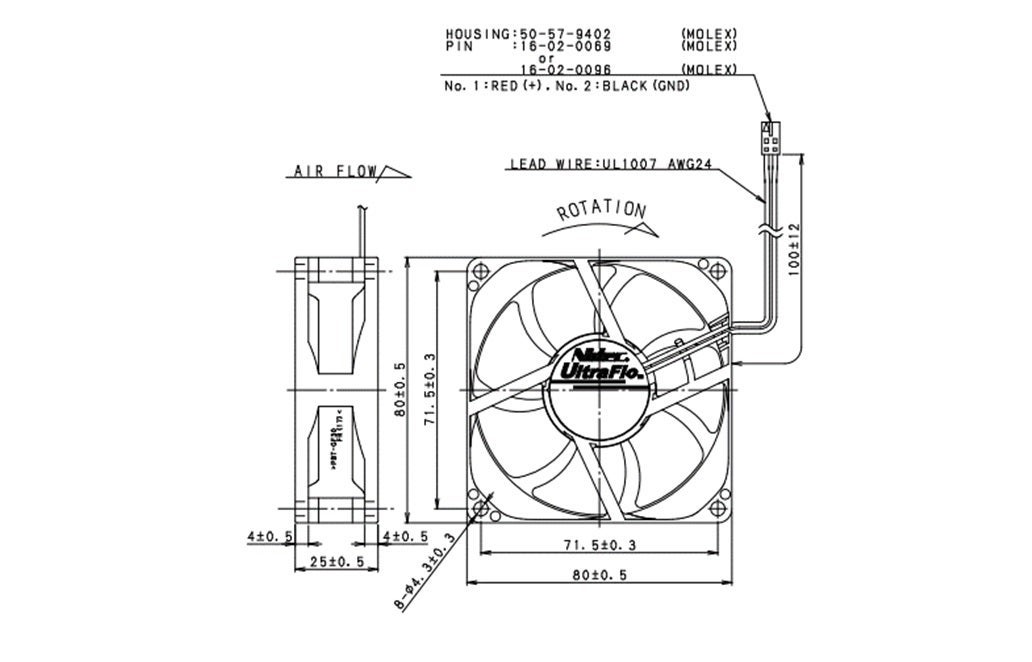

Drawing

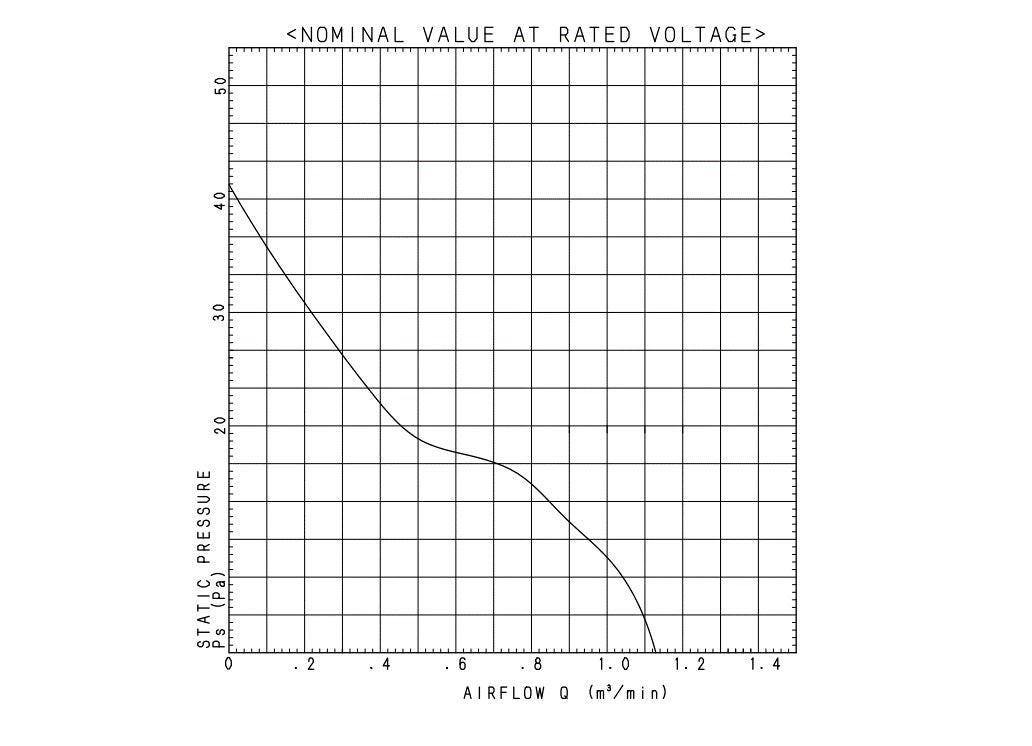

Characteristic chart
