Small-size and precision motors|Fans & Blowers|DC axial fan

T92C-A7

companies handling the product:Nidec Corporation

High-functionality fan UltraFlo series (92 x 92 x 32 mm)

A direct-current drive operated, high value-added fan motor that uses bearings and wing structures that we have developed independently. The NBRX type further improves the reliability of upon our former oil-impregnated sintered bearing, and is a totally new bearing system that we have developed independently. With a longer life than former oil-impregnated bearings, this can more securely retain rotating bodies, and features heat resistance, high-speed rotational stability, reduced magnetic vibration, and no limitations on mounting. Please contact us for details.

characteristics:
Low noise,Low vibration,Energy saving,Long life,Enviromental performance,quietness,RoHs support
Contact information for product inquiry
Contact Us

Product data

Basic information

sort by power source type DC
Size W92×H92 mm
Size □3.622
Length 32 mm
Length 1.26 mm
Operation temperature -10~70 ℃
Lifespan 50000
Mass 150~150 ℃
Bearing NBRX
Companies handling the product NIDEC CORPORATION
Input
rated voltage 12 V7~13.8 V
Operating current 0.55 A0.55~0.55 A
Rated input 6.6 W6.6~6.6 W
Output
Rated speed 3800 min-13800~3800 min-1
Maximum air flow (m3/min) 1.98 m3/min1.98~1.98 m3/min
Maximum air flow (CFM) 70 CFM70~70 CFM
Maximum static pressure(Pa) 78 Pa78~78 Pa
Maximum static pressure(inchH2O) 0.31 inchH2O0.31~0.31 inchH2O
Sound pressure(dB[A]) 48 dB[A]48~48 dB[A]

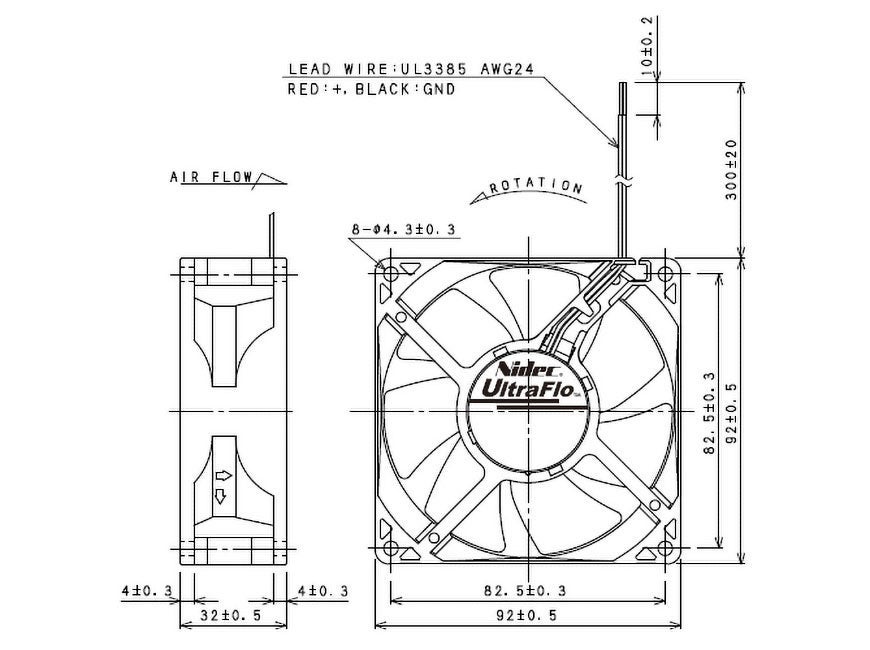

Drawing

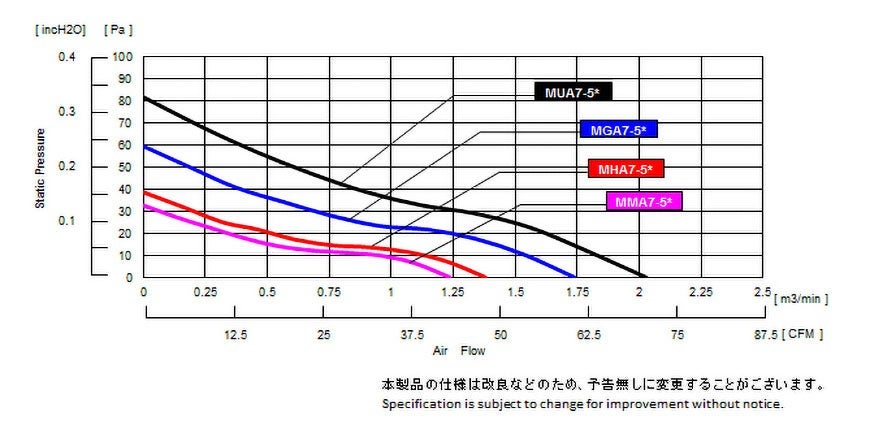

Characteristic chart
