Small-size and precision motors｜Fans & Blowers｜Blower（Centrifugal fan）
G80S
companies handling the product：Nidec Corporation
General-use DC blower fan (80 x 80 x 28 mm)
A direct-current drive operated, fan motor that uses centrifugal method to blow air. The NBRX type further improves the reliability of upon our former oil-impregnated sintered bearing, and is a totally new bearing system that we have developed independently. With a longer life than former oil-impregnated bearings, this can more securely retain rotating bodies, and features heat resistance, high-speed rotational stability, reduced magnetic vibration, and no limitations on mounting. Please contact us for details.
- characteristics:
- Low noise,Low vibration,Energy saving,Enviromental performance,quietness,RoHs support
- Contact information for product inquiry
- Contact Us
Product data
Basic information
| sort by power source type | DC |
|---|---|
| Size | W80×H80 mm |
| Size | W3.15×H3.15 mm |
| Length | 28 mm |
| Length | 1.102 mm |
| Operation temperature | -10～70 ℃ |
| Lifespan | 30000 |
| Mass | 70～70 ℃ |
| Bearing | NBRX |
| Companies handling the product | NIDEC CORPORATION |
| rated voltage | 6～13.8 V |
|---|---|
| Operating current | 0.3～0.3 A |
| Rated input | 3.6～3.6 W |
| Rated speed | 3600～3600 min-1 |
|---|---|
| Maximum air flow (m3/min) | 0.41～0.41 m3/min |
| Maximum air flow (CFM) | 14.4～14.4 CFM |
| Maximum static pressure(Pa) | 193.8～193.8 Pa |
| Maximum static pressure(inchH2O) | 0.78～0.78 inchH2O |
| Sound pressure(dB[A]) | 38.3～38.3 dB[A] |

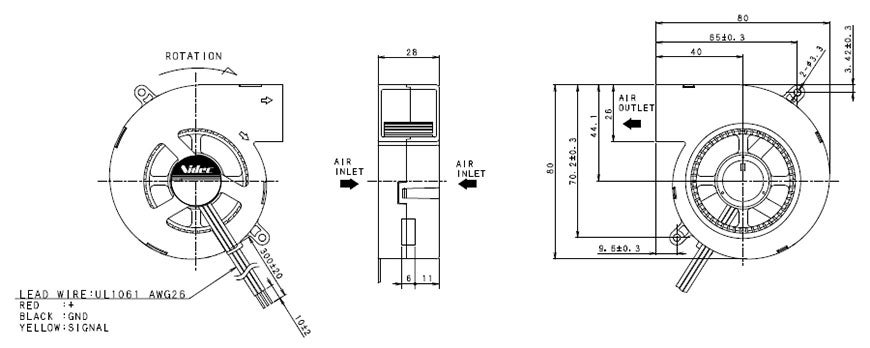

Drawing

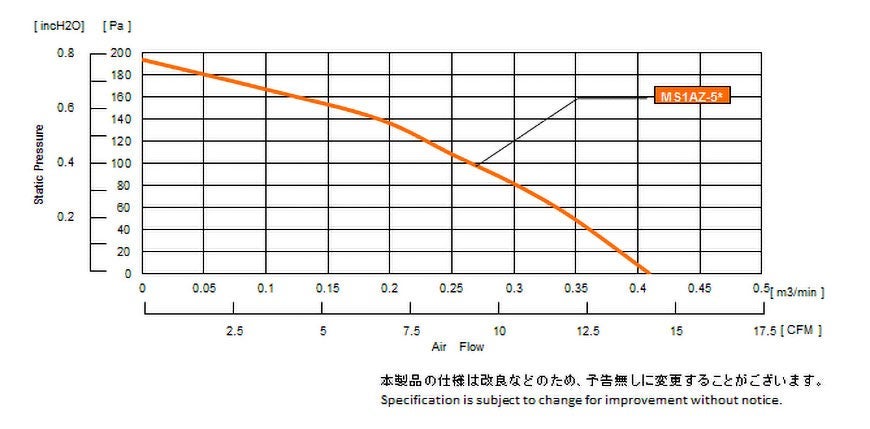

Characteristic chart
