Small-size and precision motors|Fans & Blowers|Blower(Centrifugal fan)

G95C M CJ

companies handling the product:Nidec Corporation

General-use DC Sirocco fan

High value-added fan motor that wing structures that we have developed independently.

characteristics:
High output and high efficiency
Contact information for product inquiry
Contact Us

Product data

Basic information

sort by power source type DC
Size W138.2×H113.85 mm
Size W5.44×H4.48 inch
Length 32.9 mm
Length 1.30 inch
Operation temperature -10~65 ℃
Lifespan 20,000H(65℃)
Mass 220 g
Bearing Sleeve bearings
Companies handling the product NIDEC CORPORATION
Input
rated voltage 24 V11.4~12.6 V
Operating current 1.6 A
Rated input 19.2 W
Output
Rated speed 5600 min-1
Maximum air flow (m3/min) 1.89 m3/min
Maximum air flow (CFM) 66.7 CFM
Maximum static pressure(Pa) 474 Pa
Maximum static pressure(inchH2O) 1.9 inchH2O
Sound pressure(dB[A]) 34 dB[A]

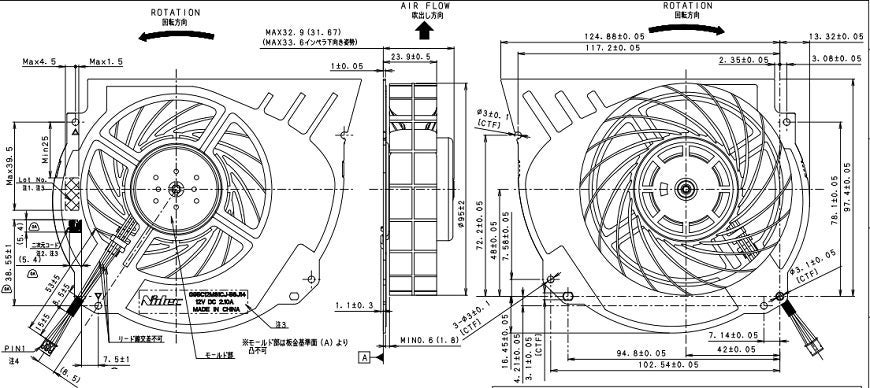

Drawing

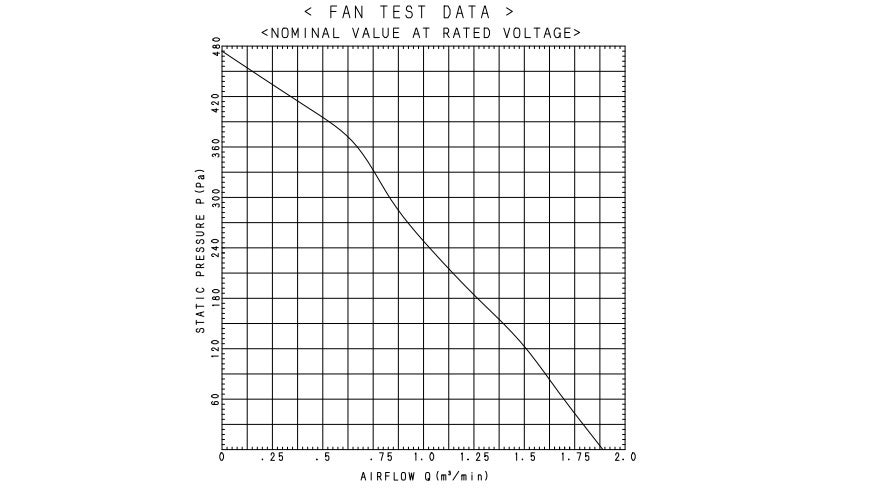

Characteristic chart
