Small-size and precision motors｜Fans & Blowers｜Blower（Centrifugal fan）
GW14E B MF
companies handling the product：Nidec Corporation
General-use DC blower fan
A direct-current drive operated, high value-added fan motor that uses bearings and wing structures that we have developed independently.The Nidec Bearing Revolution (NBR) bearing type overcomes the service life and durability issues of the former sleeve bearing. This is a high-functionality model that we have developed independently, and it uses oil-impregnated sintered bearings.Please contact us for details.
- characteristics:
- RoHs support
- Contact information for product inquiry
- Contact Us
Product data
Basic information
| sort by power source type | DC |
|---|---|
| Size | W72.6×H72.6 mm |
| Size | W2.858×H2.858 inch |
| Length | 20 mm |
| Length | 0.787 inch |
| Operation temperature | -10～70 ℃ |
| Lifespan | 30000H（40℃） |
| Mass | 450 g |
| Bearing | Ball bearing |
| Companies handling the product | NIDEC CORPORATION |
| rated voltage | 21.6～26.4 V |
|---|---|
| Operating current |
| Rated speed | |
|---|---|
| Maximum air flow (m3/min) | |
| Maximum air flow (CFM) | |
| Maximum static pressure(Pa) | 193.8～193.8 Pa |
| Maximum static pressure(inchH2O) | |
| Sound pressure(dB[A]) |

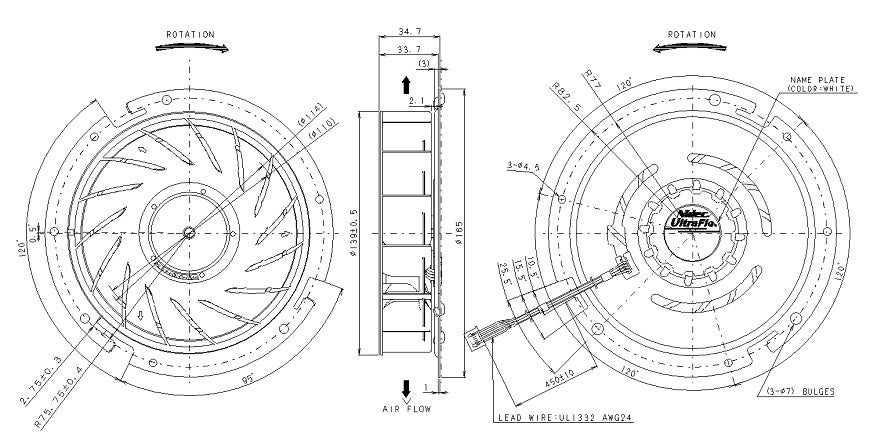

Drawing

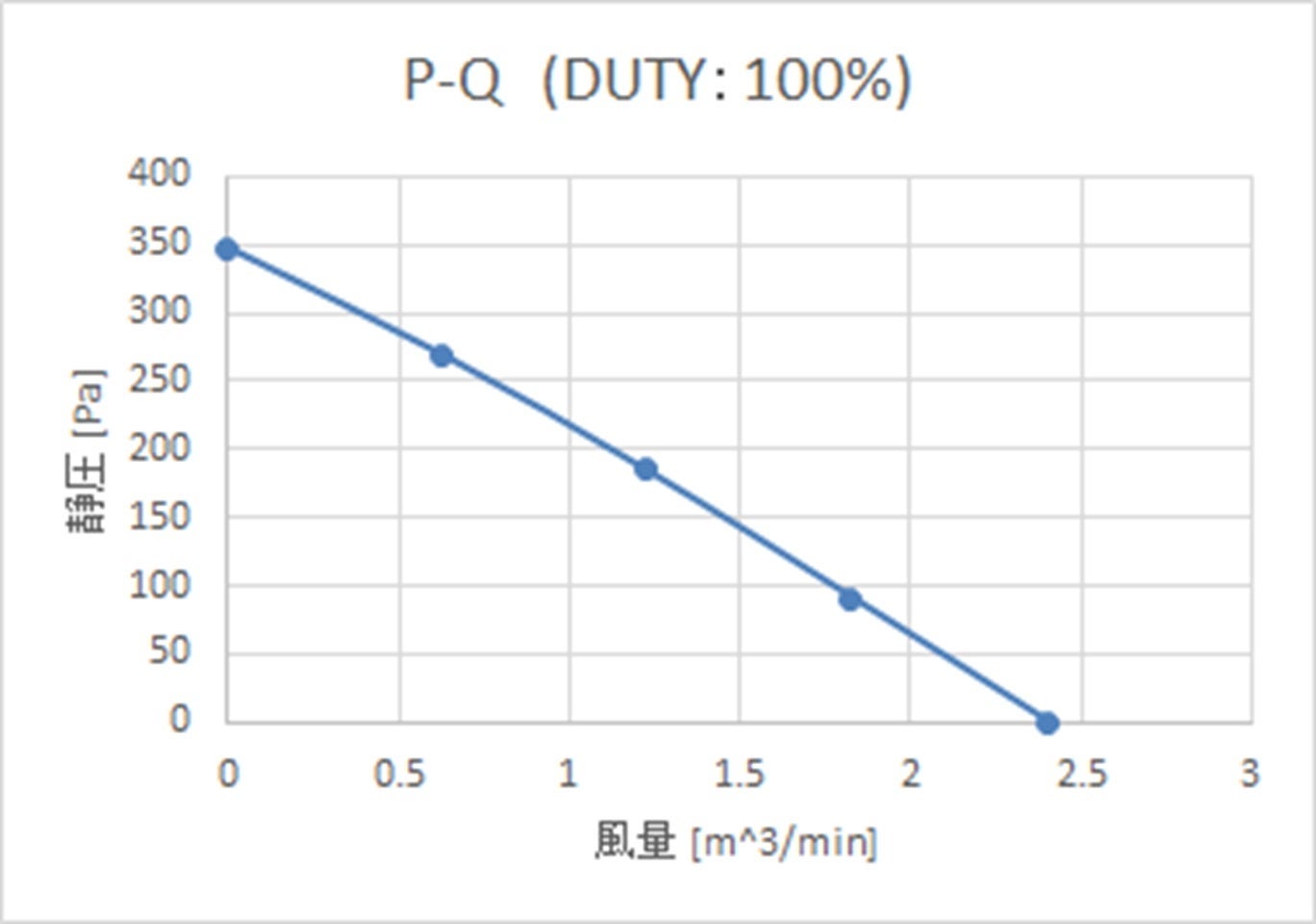

Characteristic chart
